Belkin Cat5e Network Cable Item # 416550

 |

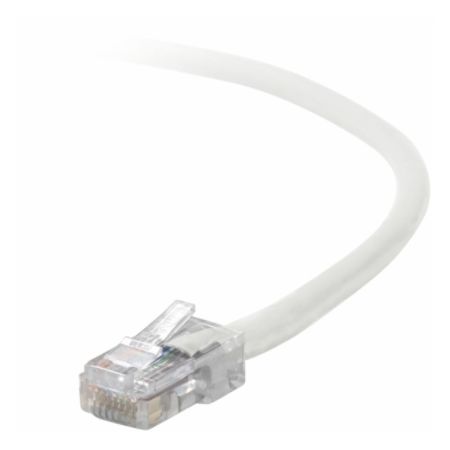

Belkin Cat5e Network Cable
$ 8 .19 / each $8.19
In Stock
Estimated delivery 3-7 business days

    Description

    Belkin Cat5e 350MHz Snagless Molded Patch Cable delivers high bandwidth performance up to 350Mhz for your data networks. Belkin patch cords are designed to meet all EIA/TIA 568B communication specifications, using 100% pure copper strands for best performance by minimizing impedance, structural return loss (SRL) and Near End Crosstalk (NEXT). Fully compatible with 1000Base-T (1 Gbps Ethernet), 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring Type 3 applications. Belkin meets Prop 65/RoHS/CE regulatory standards.

    Back To Top

    Product Details

    Item # 416550
    OfficeMax # 22600115
    Manufacturer # 520563
    Additional Information Exceeds the performance requirement of Category 5e.; Perfect in conjunction with 10 and 100 Base-T networks.; 50-micron gold plated connectors to insure a clean and clear transmission.; This product is guaranteed for life!; Premium snagless-type moldings to protect the connection.; PowerSum tested.; Technology: Unshielded twisted pair (UTP)
    Certifications & Standards EIA/TIA-568 Category 5e
    Product Name Cat5e Network Cable
    Connector on First End 1 x RJ-45 Male IEEE 802.3 Network
    manufacturer Belkin International, Inc
    brand name Belkin
    Connector on Second End 1 x RJ-45 Male IEEE 802.3 Network
    cable type Category 5e
    Connectors (Other Side) 1 x RJ-45 - male
    Connectors 1 x RJ-45 - male
    length 14 ft.
    Package Type Retail
    Conductor Copper
    color white
    warranty length limited lifetime
    Show More ▾
    Back To Top

      Customer Reviews

      Back To Top

      From the Manufacturer|Powered by Webcollage

      Thank You Is the information in this section helpful? Yes / No

      Overview

      • The Belkin CAT5e Networking Cable allows you to connect your laptop or computer to a wall outlet, cable modem, DSL modem, router, hub, patch panel, or other network-enabled device so you can access high-speed networks and/or the Internet.

      Images

      {"images":[{"assetWrapper":"image-gallery","runtimeSrc":{"height":372,"width":372,"src":"/www.belkin.com/images/product/A3L791-XX-WHT-S/372.jpg.web.png"},"isAdaCompliant":false,"src":{"height":372,"width":372,"src":"/www.belkin.com/images/product/A3L791-XX-WHT-S/372.jpg"},"sources":[{"height":372,"width":372,"src":"/www.belkin.com/images/product/A3L791-XX-WHT-S/372.jpg.w960.png","profile":"W960"},{"height":372,"width":372,"src":"/www.belkin.com/images/product/A3L791-XX-WHT-S/372.jpg.w480.png","profile":"W480"},{"height":240,"width":240,"src":"/www.belkin.com/images/product/A3L791-XX-WHT-S/372.jpg.w240.png","profile":"W240"}]}]}

      Features

        • Gold-Plated Contacts - Provide maximum conductivity
        • Snag-less Design - Protects RJ45 insertion tab
        • Offset Twisted Pairs - Reduce cross talk and attenuation
        • Molded-Strain Relief - Bends easily, for durability and fit

      Specifications

      Characteristic Impedence 100±15Ω @ 1 ~ 350MHz
      Conductor Construction Bare Stranded Copper
      Conductor Resistance 89.2Ω/km/20°C max
      Conductor Size 24AWG x 4pairs
      Connector Type(s) 50 micron gold-plated connector
      Dielectric Strength AC 1.75kV/0.15sec
      Flame Retardant Test CM
      Insulation Material HDPE
      Jacket Diameter 5.5±0.15mm
      Jacket Material PVC
      Mutual Capacitance 56pF/m max
      Propagation Delay 538nS/100m max @ 350MHz
      Spark Test 2.5kV
      Standards Compliance ISO/IEC 11801; TIA/EIA-568-B.2
      Structural Return Loss 19.0dB min at 350MHz
